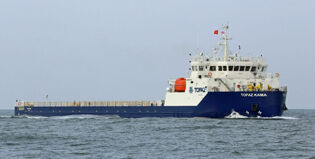

Topaz Kama

Module Carrier Vessel for Topaz Energy and Marine

863 Topaz Kama

Topaz Kamas primary activities are transport of pre-assembled modules (deck cargo) to be installed on the Tengiz oil field. With its shallow draft hull form and low air draft together with the specified propulsion configuration and low fuel consumption, the vessels will be well suited for heavy cargo operations in shallow waters and river systems.

The vessels are fitted with:

• Large cargo deck.
• Recess deck from frame #-6 to frame #163 to accommodate multiwheeler loading.
• Efficient, high capacity water ballast system.
• IMO approved ballast water treatment system.
• Two main azimuth propellers aft.
• Two tunnel thrusters forward.

Build specifications

Topaz Energy and Marine

ship owner

Vard Vung Tau

outfitting yard

December 2017

delivered

Vard Design

ship designer

Energy

sector

VARD 9 21

design

Module Carrier Vessel

type of vessel

863

yard no.

Technical specifications

123 m

length overall

16.5 m

breadth moulded

3.5 m

max scantling draught

2650 t

deadweight

18 pers

accommodation
