Integrated Bridge
A clean and efficient workspace with focus on ease of operations, safety, and ergonomics
Designed with the operator in focus, our future oriented bridge solutions are based on smart technology, ensuring intuitive user interfaces, and seamless integration with maritime systems.

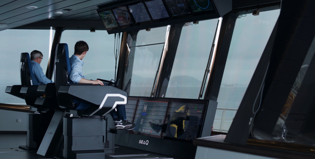

SeaQ Integrated Bridge System
Our highest level of bridge integration is a bridge solution with an extended architecture, utilizing a combination of VARD developed integration solutions, combined with optional touch monitors to gather various systems into one operator station (multifunctional display).
The bridge functionality is available through an integrated system interface, conforming to harmonized look and feel standards, backed by full-featured onboard commissioning and verification features.
What you get with SeaQ Integrated Bridge System
Key Benefits
- One control point for several workstations
- Highly scalable – prepared for the future
- Harmonized look and feel
- BAM compliant (pending certification)
- Type approval by DNV GL
- Remote connection support
Key Features
- Common trackball and keyboard functions with additional joystick zoom/pan features.
- Multifunction displays to integrate all connected systems in a KVM-matrix setup.
- Distributed IO system
- BNWAS supports 4 zone split with additional redundant panels
Available functionality
- KVM-Matrix
- Monitor Brilliance Control
- Special Keyboard interface
- BNWAS supports 4 zone split with additional redundant panels
- BAM compliant (pending certification)
Bridge Alert Management
BAM-requirements in EU Maritime Equipment Directive effective from 29 of August 2021:
New requirements are imposed on relevant new MED-installations from 29. Of august 2021 (often referred to as “Wheel marked equipment”).
The most significant change is the requirement to comply with IEC62923 Bridge Alert Management Standard, which is the test standard following the IMO MSC302(87) directive.
The intention from IMO and EU is to ensure all equipment capable of generating an alert on the bridge can be managed from a single workstation (referred to as the Central Alert Management system – CAM), reducing the number of alerts and distractions for the operator.
The SeaQ Integrated Bridge System - CAM is fully compliant with the new regulations, and may be scaled for also minimum installations combining a SeaQ Controller, Interface Unit (IO) and HMI.
Integrated Solutions
- CCTV
- Chair control
- Deck lights
- Navigation lights
- Typhon control
- Helideck lights
- Window wiper
- Window heating
- Sound Reception
- Engine alarms, E0
- Searchlights
- Intercom
SeaQ Integrated Bridge Compact
A bridge solution with a compact architecture consisting of a scalable systems integration platform, providing one control point for multiple bridge functionalities.
The bridge functionality is available through an integrated system interface, conforming to harmonized look and feel standards, backed by full-featured onboard commissioning and verification features.
System functionality, including but not limited to CAM and BNWAS, is type approved and certified according to regulations and requirements as imposed by SOLAS, IMO and DVN GL. BNWAS is equipped with the Wheel Mark indicating Marine Equipment Directive (MED) conformity.
What you get with SeaQ Integrated Bridge Compact
Key Benefits
- Highly scalable – prepared for the future
- Harmonized look and feel
- Integrated onboard commissioning and verification features
- Type approval by DNV
Key Features
- One control point for multiple bridge functionality
- Distributed IO system
- BNWAS supports 4 zone split with additional redundant panels
- BAM compliant (pending certification)
Available functionality
- Central Alert Management
- BNWAS
- Phone Control
- Outdoor light control
- Window Heating Control
System functionality, including but not limited to CAM and BNWAS, is type approved and certified according to regulations and requirements as imposed by SOLAS, IMO and DVN GL. BNWAS is equipped with the Wheel Mark indicating Marine Equipment Directive (MED) conformity.
